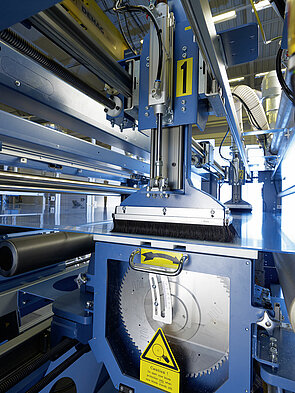

BREYER edge trimming saw
BREYER edge trimming saw – the perfect solution for a precise edge cut or individual multiple-web cutting.
Any system is only as good as its components
This is why we don’t make any compromises, especially when it comes to the sawing equipment. Everyone knows how quickly an expensive sheet can be ruined by an inaccurate cut. However, accurate sawing starts with the alignment of the saw. With BREYER systems the entire device can be adjusted in all directions ensuring the most accurate alignment.
The particularly fast and exact format adjustment is one more advantage. A digital display allows the user to set or read off the sheet width with high accuracy.
A clean job right from the start
The entire saw housing is aerodynamically optimized and comprises an efficient suction mechanism for removing the saw fines to the top and bottom. This avoids any markings caused by the shavings when the sheets
are stacked.
We are setting new standards in noise reduction
The new generation of our edge trimming saw works on an extremely low noise level.
YOUR ADVANTAGES
- High quality shoulder of the cut
- Extreme noise reduction
- Rapid and automatic format adjustment
- Fast exchange of saw blade
- Precise and rectangular cut
- Efficient saw dust extraction above and below the sheet
- European safety standard regulation
OPTIONS
- Automatic format adjustment
- Language selection via touch panel
- With 3 or 4 saw units for sheet separation
- Set of spare parts with different saw blades
Technical execution
- With 2 saw units for edge cutting
- Cutting width up to 3000 mm
- Sheet thicknesses up to 25 mm
- Saw blade diameter 315 mm
- Motoric/pneumatic saw blade lifting
- Sawing unit horizontally and vertically adjustable
- Cutting depth adjustable via display
- Soft dipping of saw blade
- Stepless speed regulation
- Operation via touch panel
